Edit an infowindow

Edit an infowindow


Do you want to get a window with information about a particular feature on your map upon clicking on or hovering across it?  Then this is the right part of the user guide for you.  The Spotzi Mapbuilder enables you to personalize the data you wish to see in the infowindow. Please read further to learn how to add and customize an infowindow that will appear when you hover across or click on a feature.

Edit Infowindow

Map: Public Airports in New Mexico – Basemap: Toner Lines

What is an Info Window?
An info window is a little popup screen that appears when you click on one of the features of a map. This info window provides you with data or images, that is linked to that specific feature on the map.

Edit infowindow on click

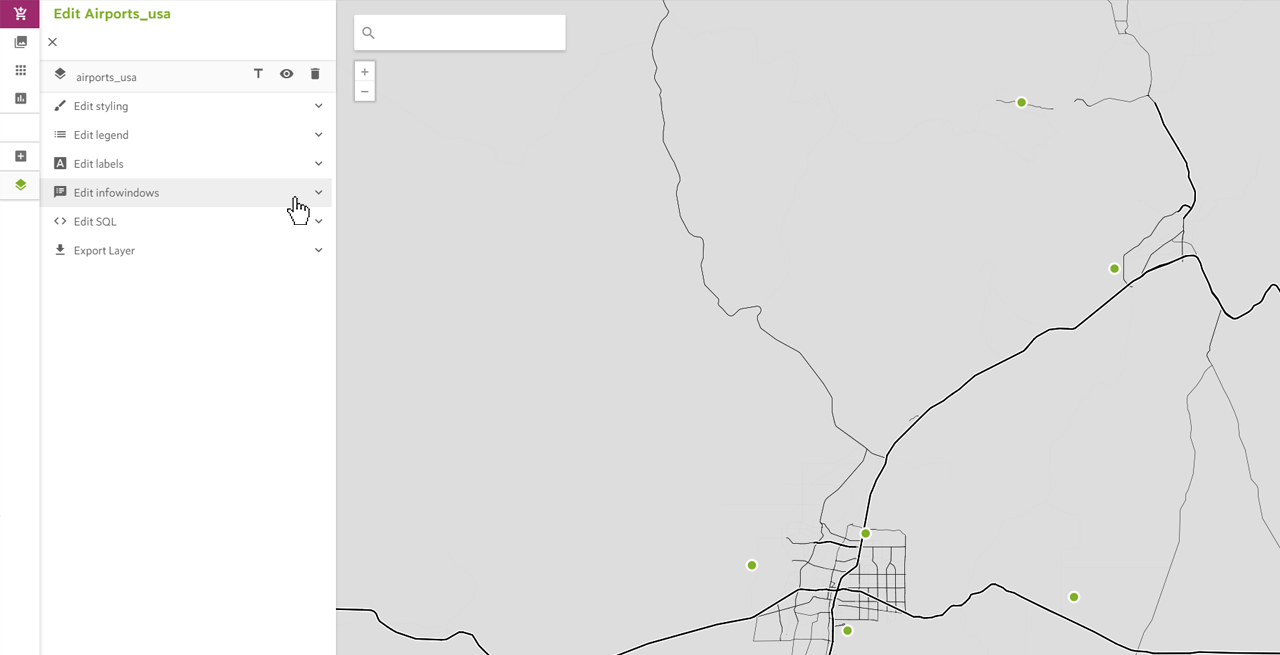

1. To edit the infowindow of your map select the corresponding data layer. A list with several options will appear. Press the EDIT INFOWINDOW option.

Edit Infowindow

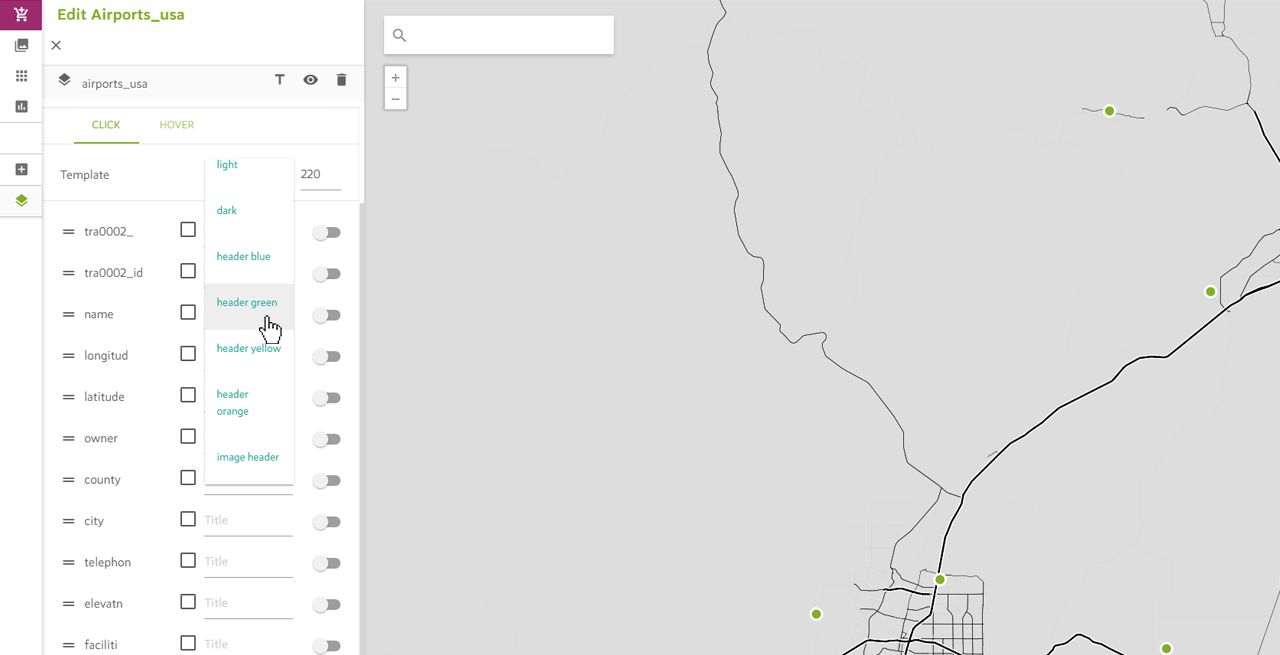

2. Make sure you have selected the CLICK tab on the green ribbon. Choose the infowindow template from the dropdown list. Next to this dropdown list you can set the infowindow width (in pixels). By default this infowindow has a width of 220 pixels.

Edit Infowindow

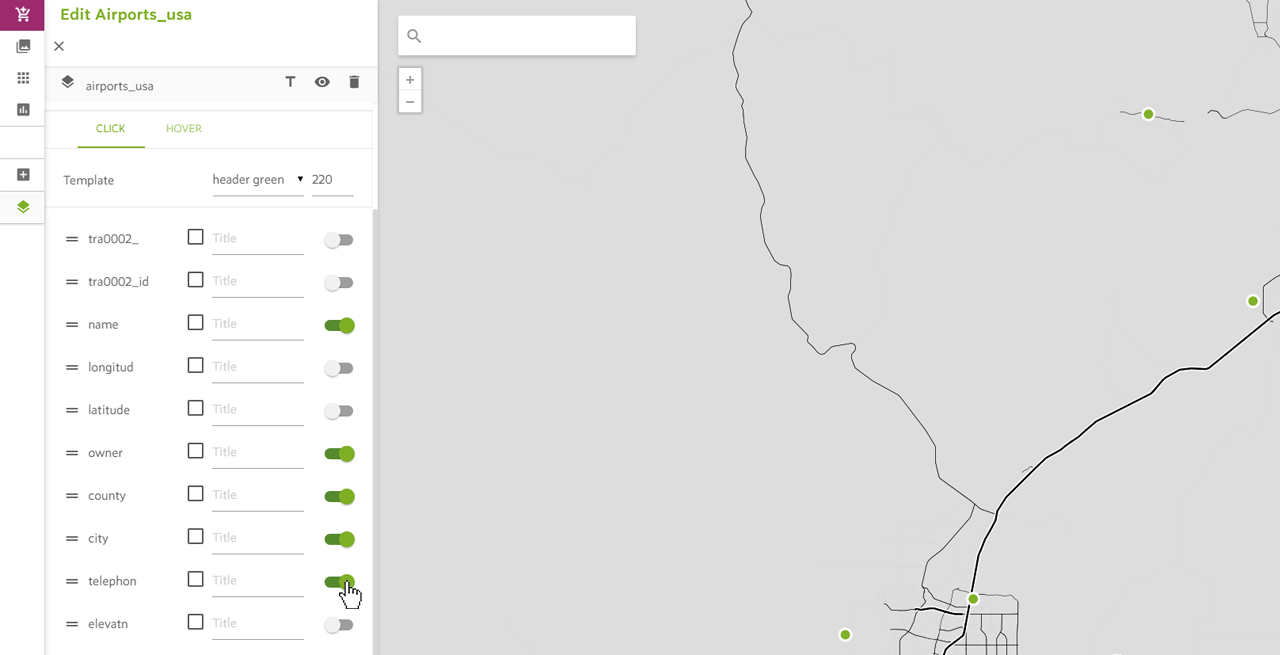

3. Below the template settings you can choose which fields you want to show in the infowindow. Select the fields by clicking the corresponding switch button.

Edit Infowindow

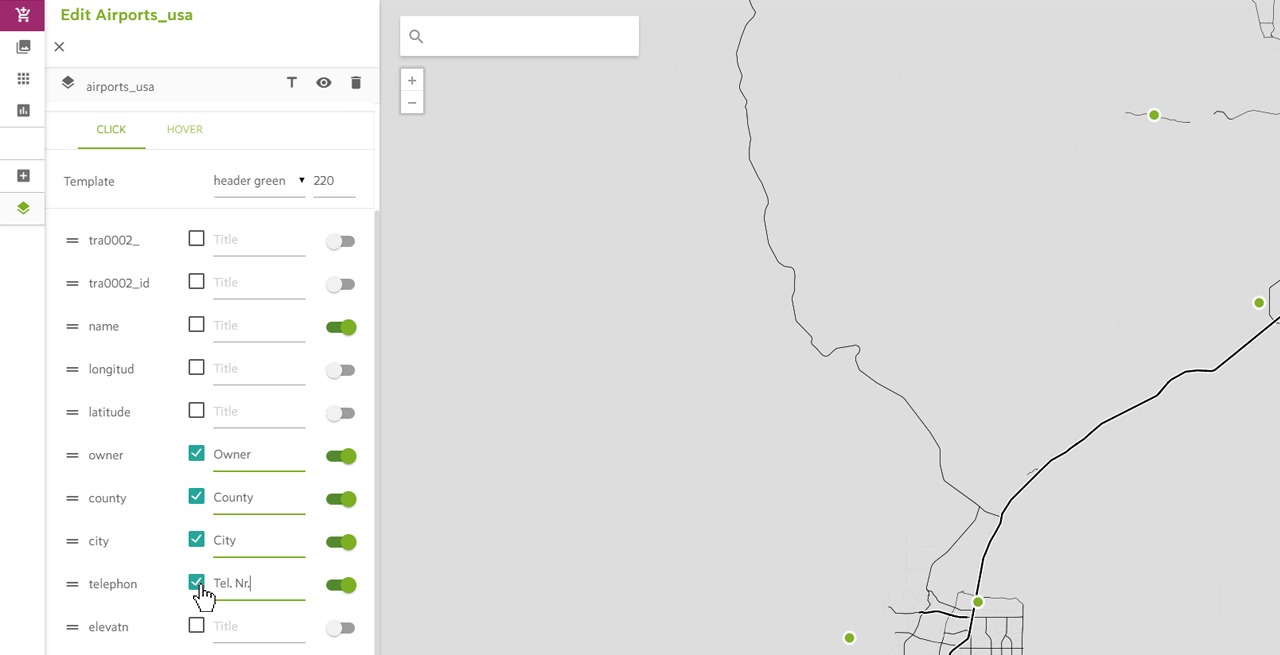

4. Choose the field that you want to have as title in the infowindow. Click the checkbox if you want the title to be shown.

Edit Infowindow

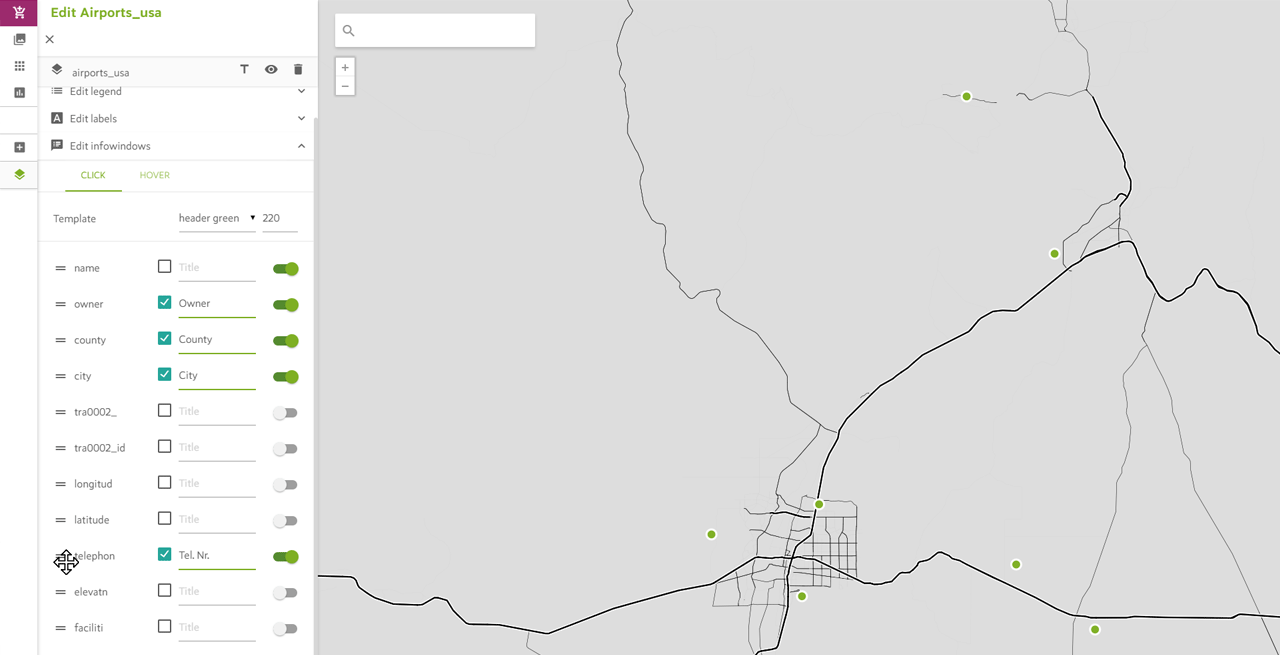

5. Change the order of the fields by dragging the fields to the right positions.

Edit Infowindow

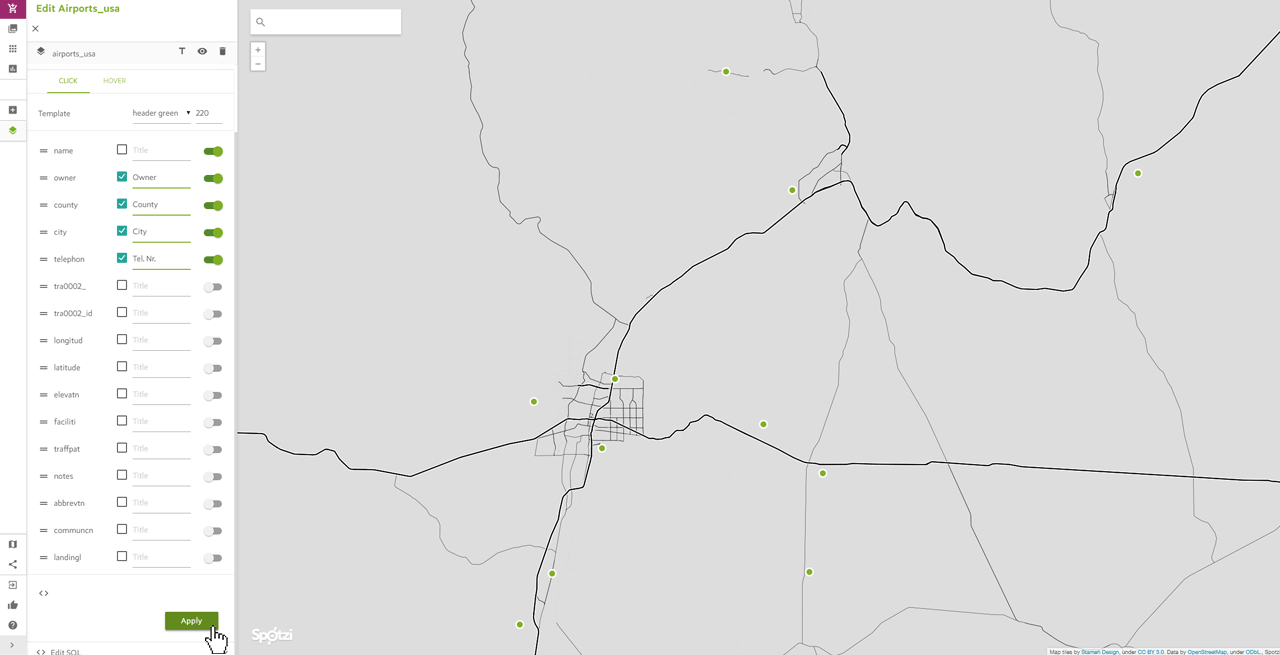

6. Press APPLY to confirm.
Edit Infowindow
7. Great! You have added an infowindow to your map.
Edit Infowindow

Edit infowindow on hover


1. To edit the infowindow of your map select the desired data layer. A list will appear with a few options. Press the EDIT INFOWINDOW option.

Edit Infowindow

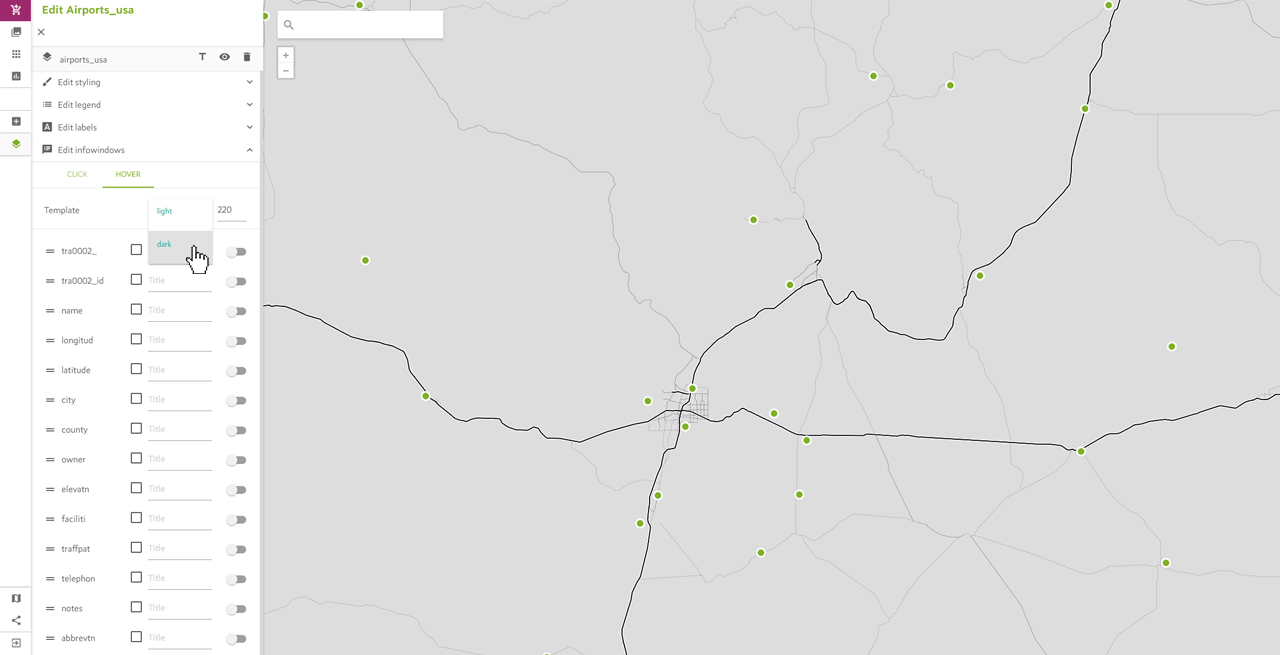

2. Make sure you have selected the HOVER tab in the green ribbon. Choose the infowindow template from the dropdown list. Next to this dropdown list you can set the infowindow width (in pixels). By default this infowindow has a width of 220 pixels.



Edit Infowindow

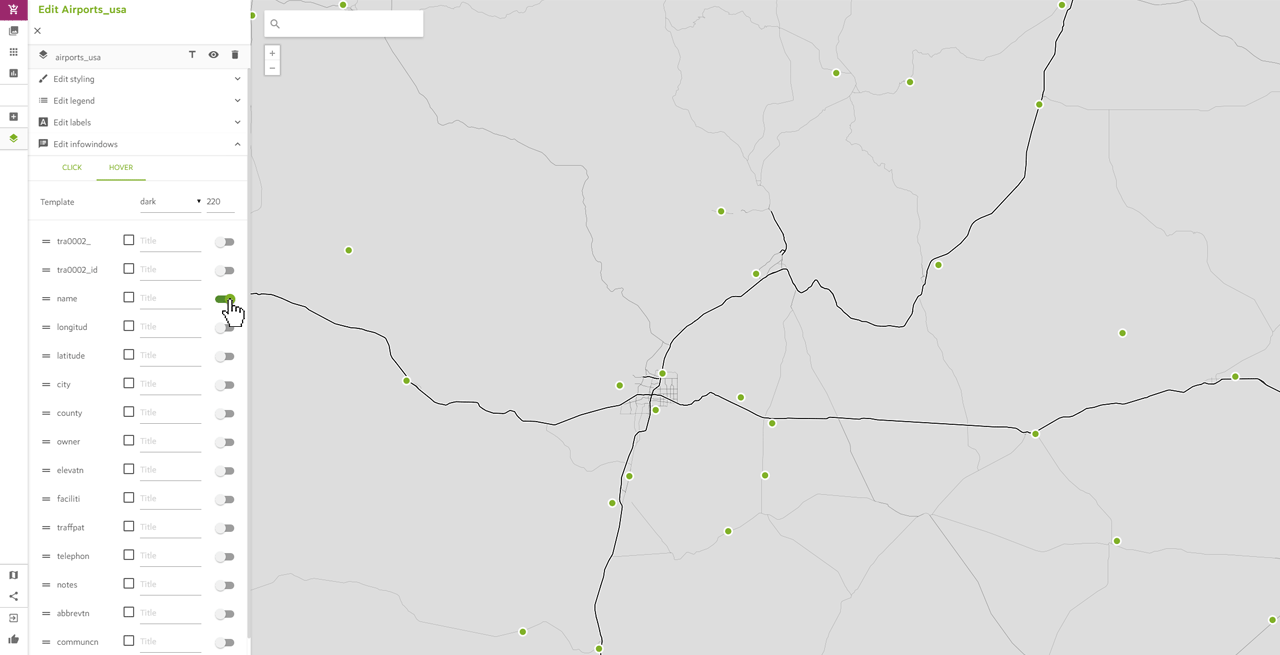

3. Below the template settings you can choose which fields you want to show in the infowindow. Select the fields by clicking the corresponding switch buttons.

Edit Infowindow

4. Choose the field that you want to have as title in the infowindow. Click the checkbox if you want the title to be shown.

Edit Infowindow

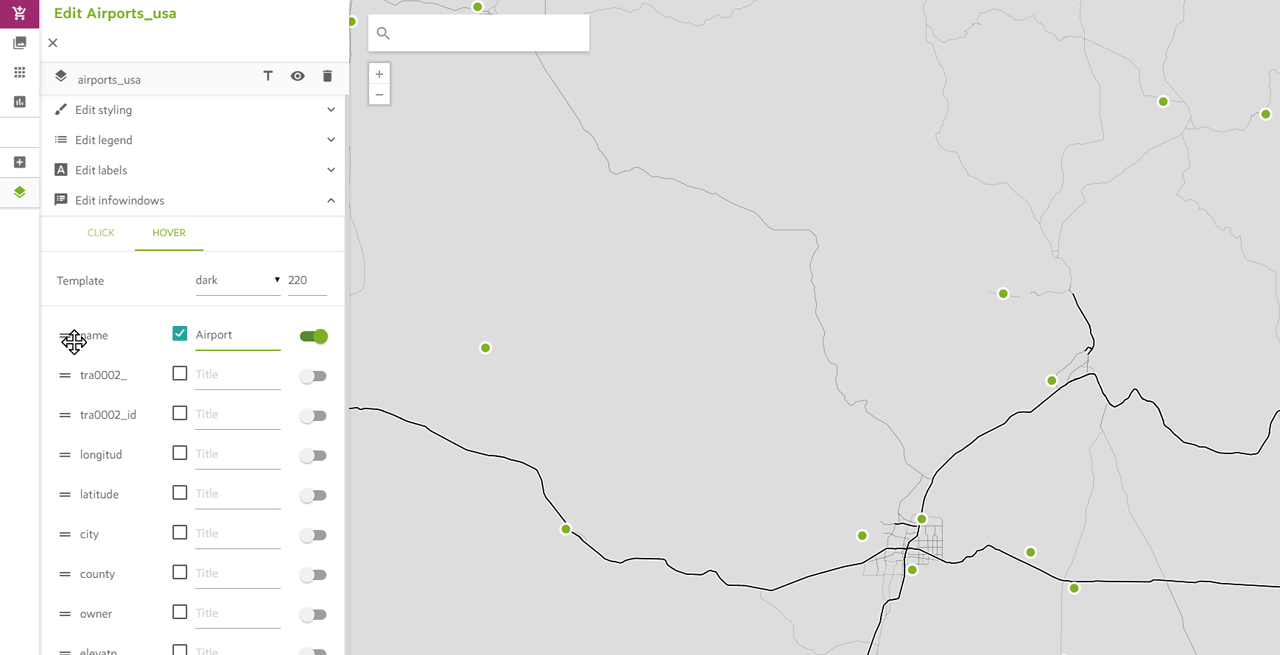

5. Change the order of the fields by dragging the fields to the right positions.

Edit Infowindow

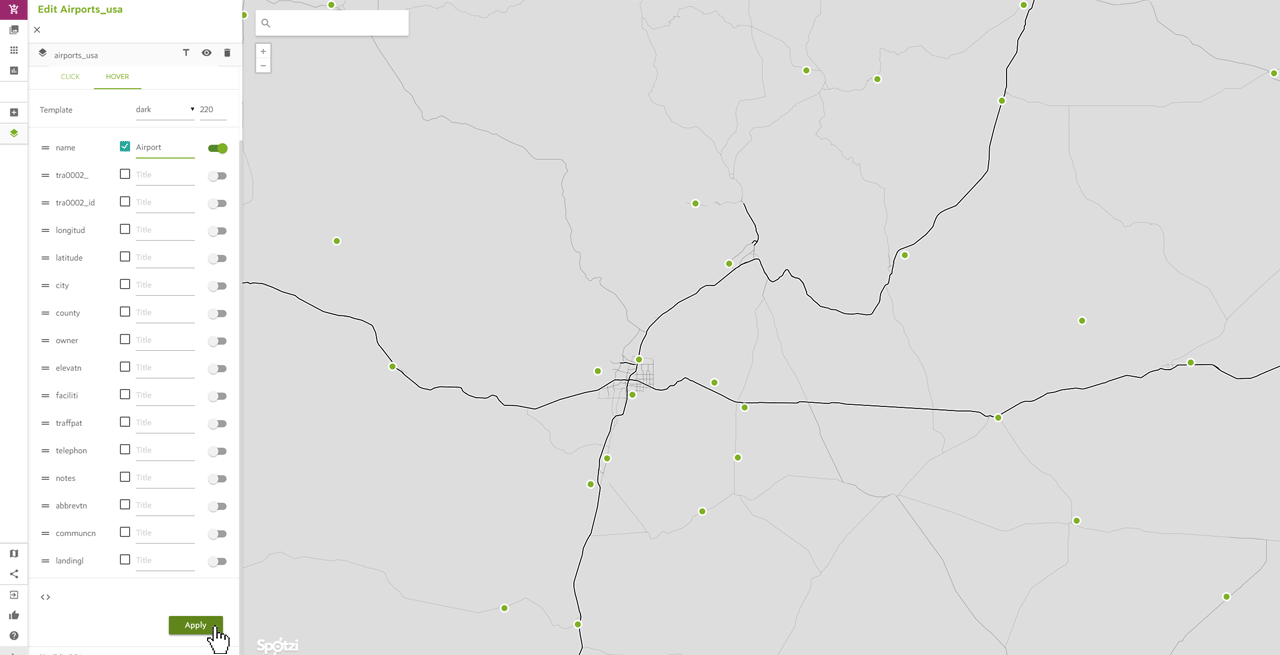

6. Press APPLY to confirm.
Edit Infowindow

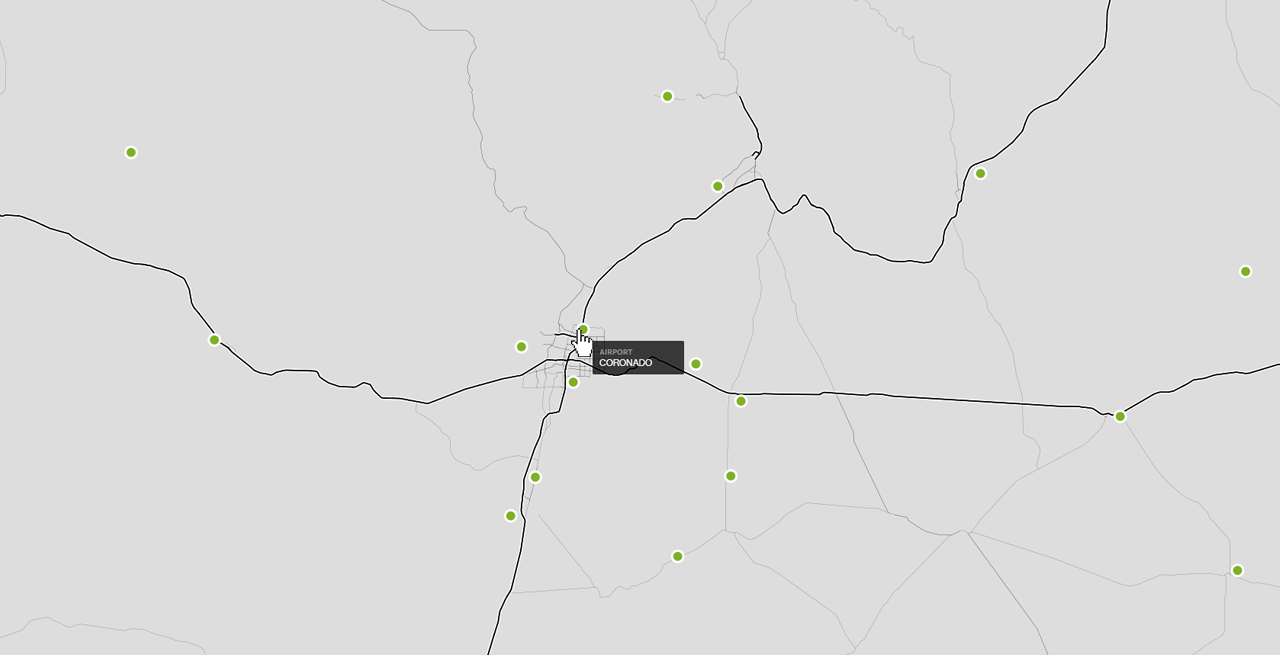

7. Great! You have added an infowindow to your map.
Edit Infowindow
