Styling map features separately

Styling map features separately


After having created a map from your data, you can adjust its style by using the extensive range of styling options that come with the Spotzi Mapbuilder. In this article we will demonstrate how to style your map features straight from the map view.

Quick tip! Do more styling in less time.

Do you have a lot of features on your map that you want to give a categorized styling based on a range or a certain value? Please read our article about styling multiple features.

Styling a point

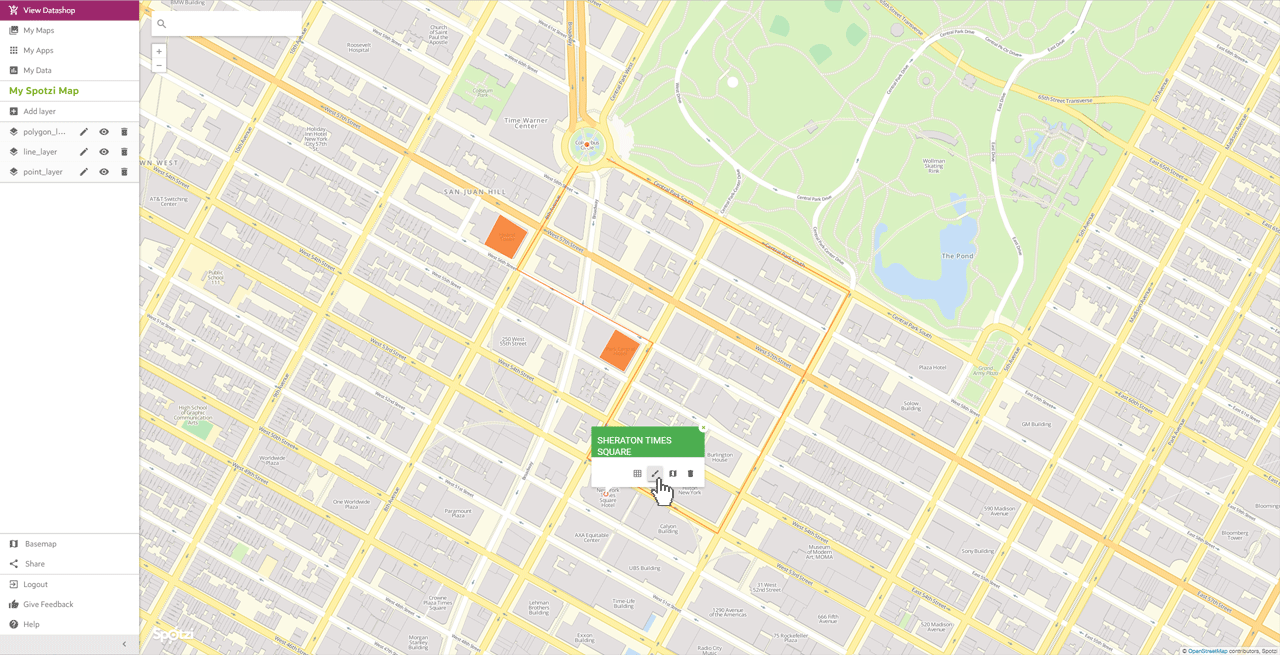

In this example we will use a map that contains a point, line and polygon layer. We will start off with styling a point straight from the map. Click the point and click the EDIT STYLING button.

Edit Styling of a Point

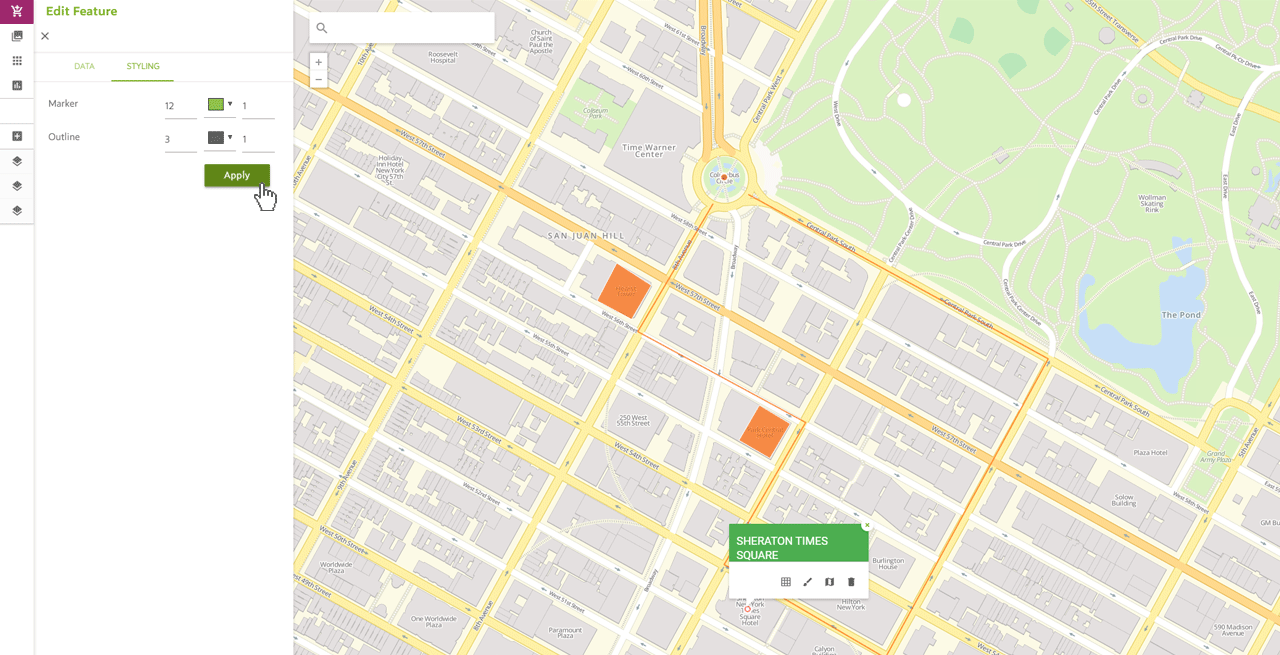

Now the styling console of your feature will appear on the left side. Here you can adjust the following styling:

  • Marker Fill: Size, Color and Opacity (0-1)
  • Marker Outline: Size, Color, Opacity (0-1)

Choose a styling and press the APPLY button to apply your styling.

Edit Styling of a Point

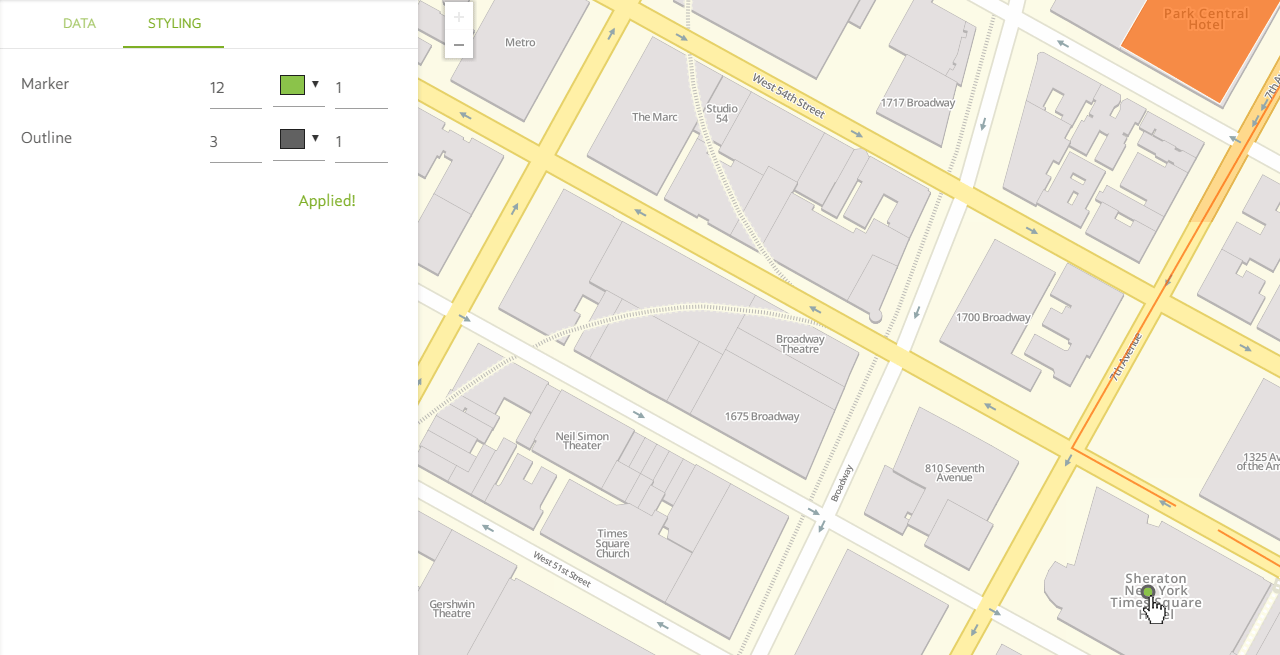

Great! You have successfully styled your point.

Edit Styling of a Point

Add a custom map marker.

Do you want to create a point map with brand icons or one of your own custom icons? Please read our article about adding custom map markers.

Styling a line

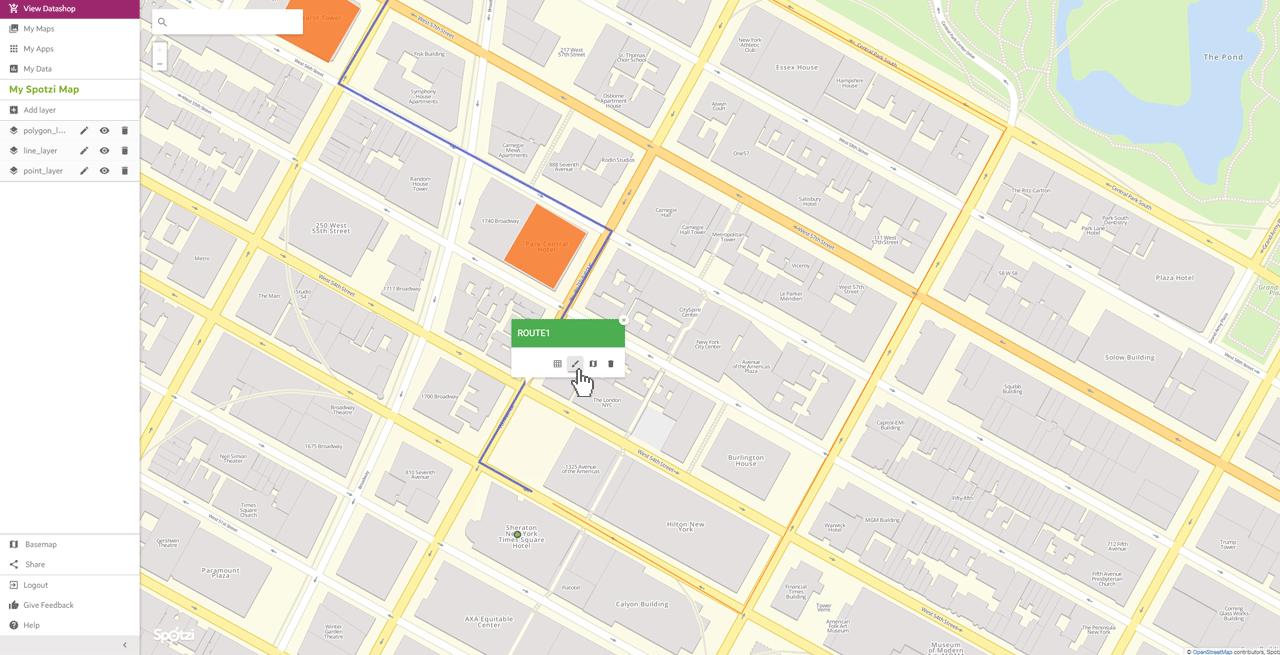

To style your line feature click the line and click the EDIT STYLING button.

Edit Styling of a Line

Now the styling console of your line will appear on the left side. Here you can add the following styling:

  • Line: Width, Color, Opacity (0-1)

Choose a styling and press the APPLY button to apply your styling.

create map

Styling a polygon

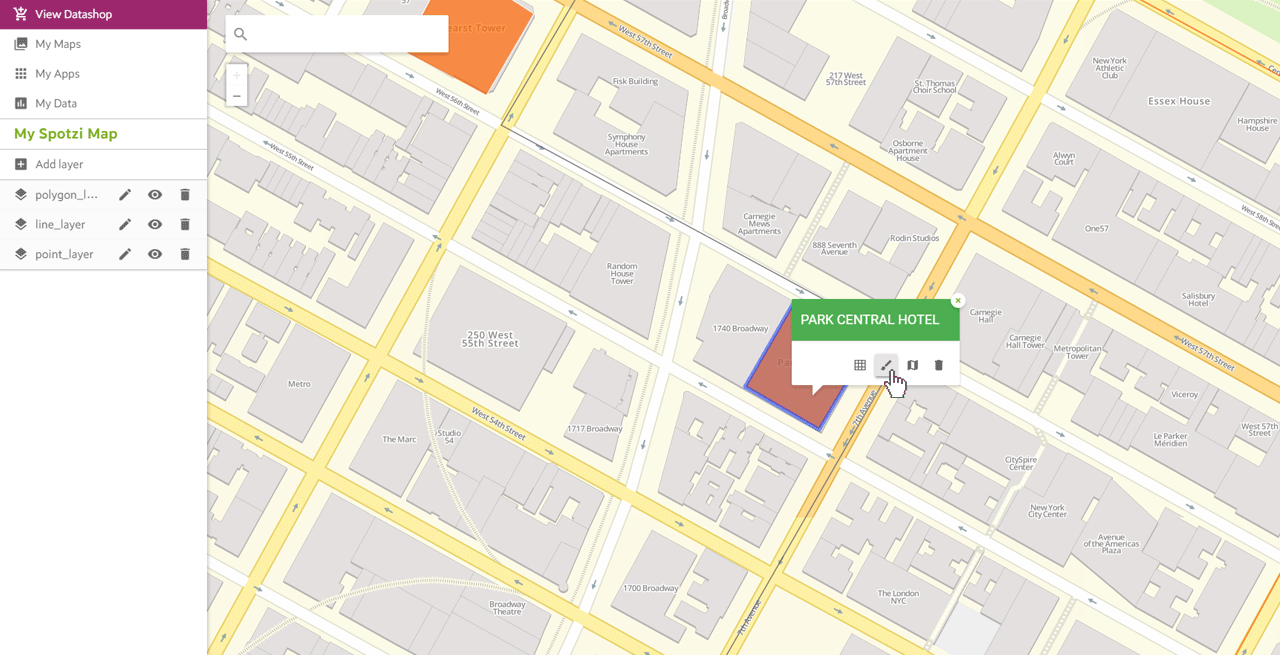

To style your polygon click the polygon and click the EDIT STYLING button.

Edit Styling of a Polygon

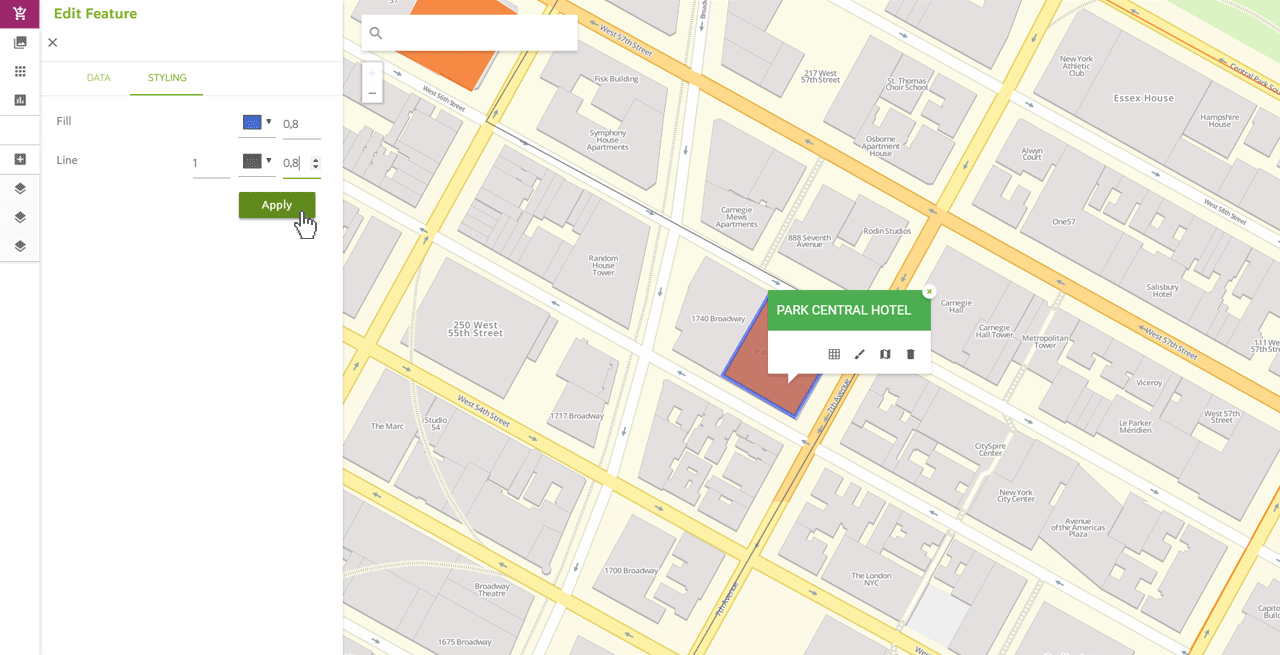

Now the styling console of your polygon will appear on the left side. Here you can add the following styling:

  • Polygon fill: Color, Opacity (0-1)
  • Polygon line: Width, Color, Opacity (0-1)

Chose a styling and press the APPLY button to apply your styling.

Edit Styling of a Polygon

Add a custom polygon fill pattern/image.

Did you know that you can also change a polygon fill to a pattern/image? Please read our article about adding custom map fill patterns.

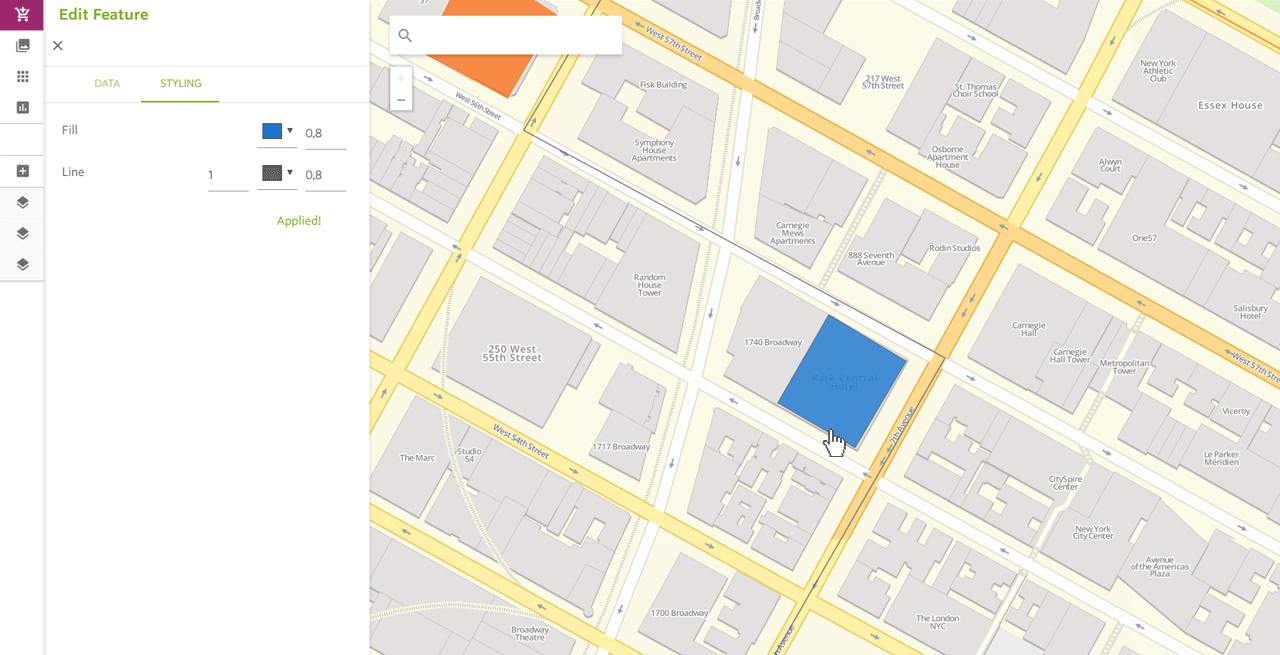

Great! You have successfully styled your polygon.

Edit Styling of a Polygon

Keep in mind!

If you edited the styling of your features separately and create a categorized styling afterwards, the previous styling will be overwritten. Create a new map from your data if you do not want to affect your current styling.
